How do you hook up two RCA cables together for men?

1. Unplug both the red and white RCA male plugs going into the car amp.
2. Plug the red male RCA lead into the female socket on the Y plug.
3. So now you will have two separate connections for each RCA plug that is coming from the car radio.

How do you join RCA cables together?

Drop the outer sleeve of the RCA plug over the wire. Hold one wire to the center pin connector, heat them with the soldering iron, and then apply a small bead of solder. Repeat with the second wire and the ring connector. Then, slide the outer sleeve up over the innards of the connector and snap or screw it into place.

Can you cut and solder RCA cables?

RCA cables are a ubiquitous part of home audio and video systems. RCA audio and video cables can split, fray or short out over time. Splicing good sections of cable together is an efficient way to repair old cables and get them back in action.

What are the red and white cables for in RCA?

They are often color-coded, yellow for composite video, red for the right audio channel, and white or black for the left channel of stereo audio. This trio (or pair) of jacks can often be found on the back of audio and video equipment.

Can you swap red and white RCA cables?

The RCA connector is a coaxial connector that is simply pushed into its socket with your bare hand. The Red and White colors are associated to Audio while the Yellow is used for Video. There are no physical differences between the different colors, this is only to allow users plug the wires correctly.

Do RCA cables go to input or output?

It will usually be labeled as an input or an output. An output is for sending the audio from this device to another. An input is for receiving the audio from somewhere else. The RCA connectors are usually colored white for the left channel and red for the right channel.

Can you splice RCA wire?

RCA cables are a ubiquitous part of home audio and video systems. RCA audio and video cables can split, fray or short out over time. Splicing good sections of cable together is an efficient way to repair old cables and get them back in action.

Can you splice audio cable?

There are a couple of ways to splice speaker wires. One way is to twist speaker wires together and use electrical tape. However, tape wears out over time, and the smallest tug on the wires can separate the connection. The better option is an in-line electrical crimp connector (also known as a "butt" connector).

Which wire is positive on RCA cable?

There are no neg and pos in RCA cables. One is the left channel and the other is the right channel. Each cable contains its own positive and negative lead. Just plug the proper right channel or left channel plug into the appropriate socket.

How can I extend my audio cable?

With a soldering/heat gun, the idea is very straightforward: you just heat the two wires up to an extent that they “glue” to each other. If you were wondering – how to extend speaker wire for surround sound – soldering is the most effective and efficient technique. A set of wire nuts or shrink tubes.

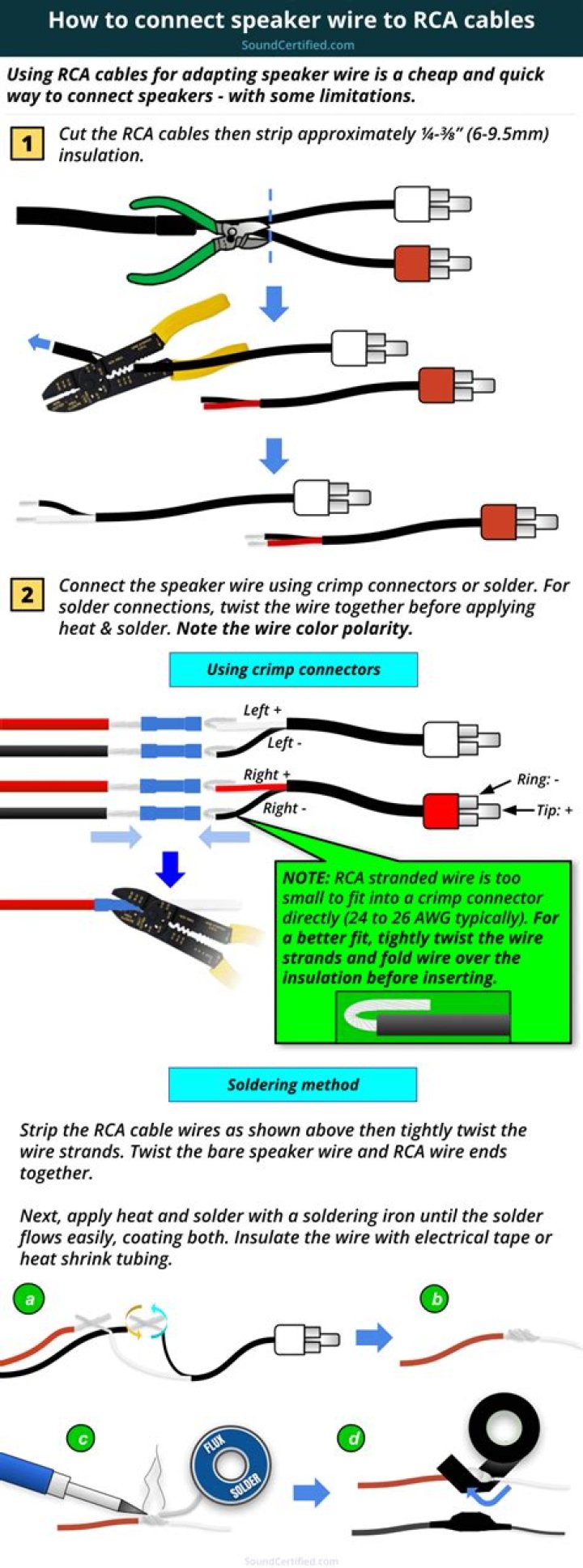

Can you extend RCA cables with speaker wire?

If you want to try it anyway, you would need THREE runs of speaker wire. One each for the video, L audio, and R audio. In each case you'd connect one of the wires of the pair to the "live" wire in the RCA, and one to the shield. You have to be certain that you don't interchange these.

How do you crimp RCA cables?

1. Step 1 – Spool out your length of cable. ...
2. Step 2 – Strip cable to center conductor. ...
3. Step 3 – Strip only the outer jacket. ...
4. Step 4 – Fold braided shield back. ...
5. Step 5 – Insert the cable into the compression connector. ...
6. Step 6 – Crimp the connector on to the cable. ...
7. Step 7 – Crimp the other end of the cable.

How many wires does an RCA cable have?

Many cables have 4 conductors. If this is the case, just twist the common colors together. Coat or tin the conductor ends. Applying a small amount of solder to the twisted ends keeps them together and it easier to connect them to the RCA end.

How do you connect audio wires together?

Twist the positive ends of each wire together.

Lay the bare ends of each positive wire over each other to form an X. Then, rotate one side of the wire toward you and the other side away from you to twist the two wires together. Keep twisting until the wires are connected firmly together.

How do you splice a wire together?

Simply strip the middle of your wire, remove the insulation using a hobby knife/soldering iron, wrap a separate wire/terminal to the exposed wire, and solder. When finished, add some heat shrink or hot glue for insulation.

What is inside RCA cable?

Materials: The connectors on RCA cables are often gold, silver, or copper. As you might expect, the gold connectors are the most expensive. They're also better than silver and copper connectors at preventing oxidation, but not as good at electrical conductivity.

What is the maximum length of RCA audio cable?

Most RCA audio cables that are built reasonably well with shielding can be run effectively from 100 to 200 feet.

How do I convert an RCA to a USB cable?

By far the simplest method of creating an effective RCA to USB cable is to purchase an RCA to USB adapter directly and attach it to a pre-existing RCA cable. The mechanics of these adapters is relatively straightforward.

Can you plug RCA into aux?

If you have an line level RCA audio output it should work fine into any aux input. If the aux input has a 3.5mm stereo mini jack then you will need a cable with 2 RCA at one end and the stereo mini plug at the other. They also make adapters if you already have a cable you want to use.

What are RCA outputs?

The RCA is a stereo audio output. This means that they can split the audio into two separate channels – left and right channel. This allows the listener to hear more dimensions of sound, improving the listening experience.

Is RCA a mono or stereo?

RCA cables, which are also known as phono cables, were initially used for mono sound. However, technological advances created a need for changes and advancements that turned RCA cables into stereo ones over time. The switch from mono to stereo led to significant changes, especially in the design of the connector.
