The main difference between flat slab & conventional slab-beam system is that the one is directly supported on the column while another system has a beam for support. The load is transferred directly from slab to column in the flat slab.

Is beam required for slab?

Although a concealed beam has a similar depth to a slab, it reinforced separately with longitudinal bars and stirrups like a regular beam, and once the slab cast, it disappears. For designing a concave beam analysis of beam and model with whole slab is necessary.

Is a concrete beam a slab?

Precast concrete beams and slabs (or planks and joists) is a construction system comprised of precast concrete elements that span in modules between walls and are tied together with rebar that locks into a thin cast-in-place slab.

What is difference between floor and slab?

Slab is nothing but the structural member which depth is not less than 120 mm. The slab is constructed by using reinforced cement concrete. The floor is one on which you can stand,or move. The ceiling is nothing but the bottom of slab.

What is the difference between slab and column?

Slab is an important structural element which is constructed to create flat and useful surfaces such as floors, roofs, and ceilings. Commonly, slabs are supported by beams, columns (concrete or steel), walls, or the ground. The depth of a concrete slab floor is very small compared to its span.

What is slab beam?

An RCC beam is provided within the slab, which depth is equal to the slab depth refers to the hidden beam. It also refers to a concealed beam. The hidden beam forms an integral part of the frame structure and is usually used.

Is slab on top of beam?

The slab which is supported on Beams and columns is called a conventional slab. In this kind, the thickness of the slab is small whereas the depth of the beam is large and load is transferred to beams and then to columns. It requires more formwork when compared with the flat slab.

What is ground beam?

noun. a reinforced concrete beam for supporting walls, joists, etc., at or near ground level, itself either resting directly upon the ground or supported at both ends by piers. groundsill.

Is slab a ceiling?

A slab is a structural element, made of concrete, that is used to create flat horizontal surfaces such as floors, roof decks, and ceilings.

What are the types of slabs?

What are the 16 different types of slabs in construction?

• One-Way Flat Slab. ...
• Two-Way Flat Slab. ...
• Kitchen Slab. ...
• Sun Shade Slab. ...
• Lintel. ...
• Sunken Slab. ...
• Cable Suspension Slab. ...
• Pre-Tension Slab.

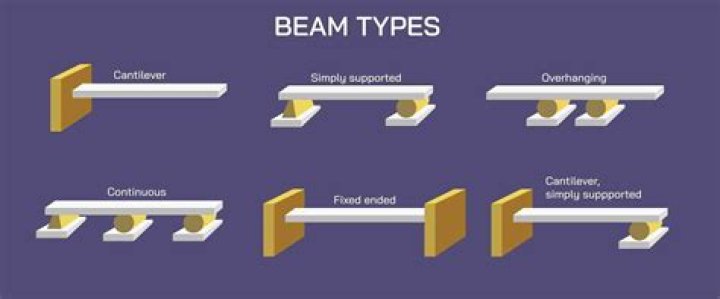

What are the types of beam?

What are the types of Beam?

• Timber Beam.
• Steel Beam.
• Reinforced Concrete Beam.
• Composite Beam.
• Simply Supported Beam.

What is the minimum size of beam?

THE STANDARD SIZE OF THE BEAMS

In a residential building it is 9 ʺ × 12 ʺ or 225 mm × 300 mm standard size according to (IS codes). The minimum RCC beam size should not be less than 9 ʺ × 9 ʺ or 225mm × 225mm with the addition of a 125mm slab thickness.

What is foundation beam?

The grade beam is also called the foundation beam. It is a beam that is built at earth level mostly used to buildings with piles and to connect pile caps to each other or it can also be explained as reinforced concrete members which are constructed to act as horizontal ties between footings or pile caps.

What is a concrete beam?

In structural engineering, a concrete beam is a load-bearing unit that can be used to carry both horizontal and vertical loads. Known as reinforced concrete beams or reinforced cement concrete (RCC) beams, these beams are made by encasing steel bars, plates, or fibers within the concrete.

Is steel a beam?

A steel beam is a structural steel product that is made to support heavy loads. Steel beams come in different sizes and types, hence their different applications in the construction of structures and buildings. The specifications of a structure determine the geometry, size and shape of beams.

What is a lintel beam?

A lintel or lintol is a type of beam (a horizontal structural element) that spans openings such as portals, doors, windows and fireplaces. It can be a decorative architectural element, or a combined ornamented structural item.

What is the thickness of slab?

In general, 6 inch (150mm) slab thickness is considered for residential and commercial buildings with reinforcement details as per design. Methods used for finding slab thickness varies for different types of slabs.

What is slab in RCC?

A concrete slab is a common structural element of modern buildings, consisting of a flat, horizontal surface made of cast concrete.

What is slab height?

Total floor to roof slab top height is about 10 feet. Consider thickness of slab 6 inch,deducting the thickness of the roof slab,it will be 10 feet _ 6 inch = 9 feet 6 inches.

Are ground beams foundation?

Ground beams are typically constructed at foundation level. Ground beads support wall, joists, etc. It is provided where the soil bearing capacity beneath the wall is poor.

Are ground beams necessary?

It helps to support the wall, joist and other structures, especially in places where the soil is not sturdy enough to support the structure. In other words, the ground beam helps to establish a strong foundation to begin construction on.

What is PAD and beam foundation?

Pad and ground beam

This is similar to a continuous pad but differs in that smaller isolated pads are connected by ground beams. This helps to improve structural rigidity.

What is the purpose of slab?

Functions of Slab:

It provides a covering shelter or working flat surface in buildings. Its primary function is to transfer the load by bending in one or two directions. The upper slab becomes the ceiling for the storey beneath it.

What type of concrete is used for slabs?

GRADE: C10 CONCRETE

This concrete is generally used for non-structural construction elements like patio slabs and pathways.

What is LX in slab?

For any slab, if Ly = Lx, the slab has a tendency to bend in both directions. With an increase of Ly, the tendency of bending along Ly is reduced and that on Lx is increased. When Ly/Lx ≥ 2, the slab bends only in X directions. When Ly/Lx ≥ 2, the slab is called a one way slab.
